Technical Highlights & Features

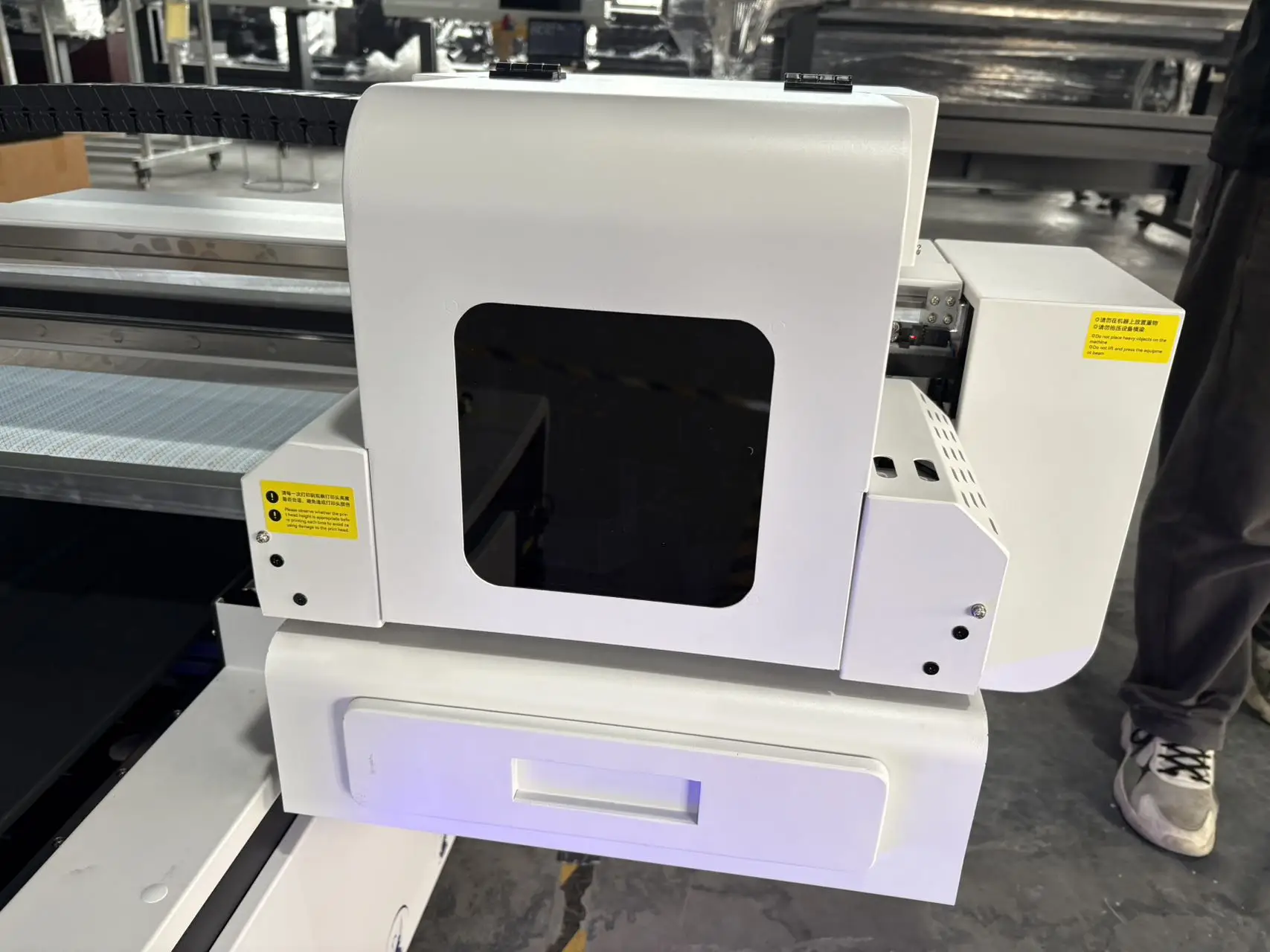

Precision Sheet Metal Profiles
Constructed with industrial-grade precision sheet metal, the SC-ZT6090 provides a rock-solid foundation for high-speed printing. The vibration-damping structure ensures micron-level accuracy and long-term mechanical reliability during continuous operation.

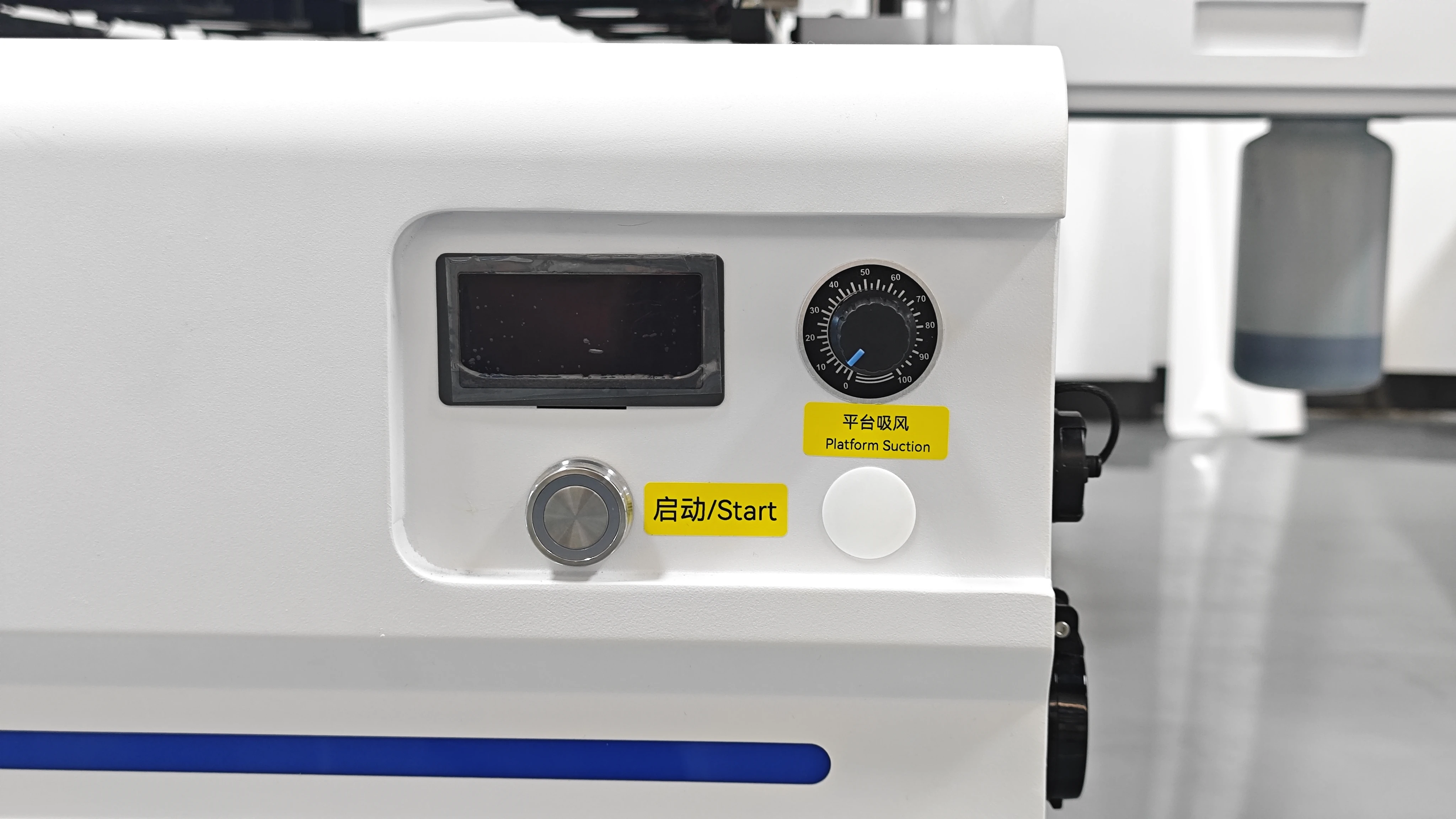

High-Power Suction Platform
The advanced vacuum suction system features high-output fans that firmly secure various substrates, from thin films to rigid boards. Adjustable pressure controls prevent material warping and ensure a perfectly flat printing surface for uniform droplet placement.

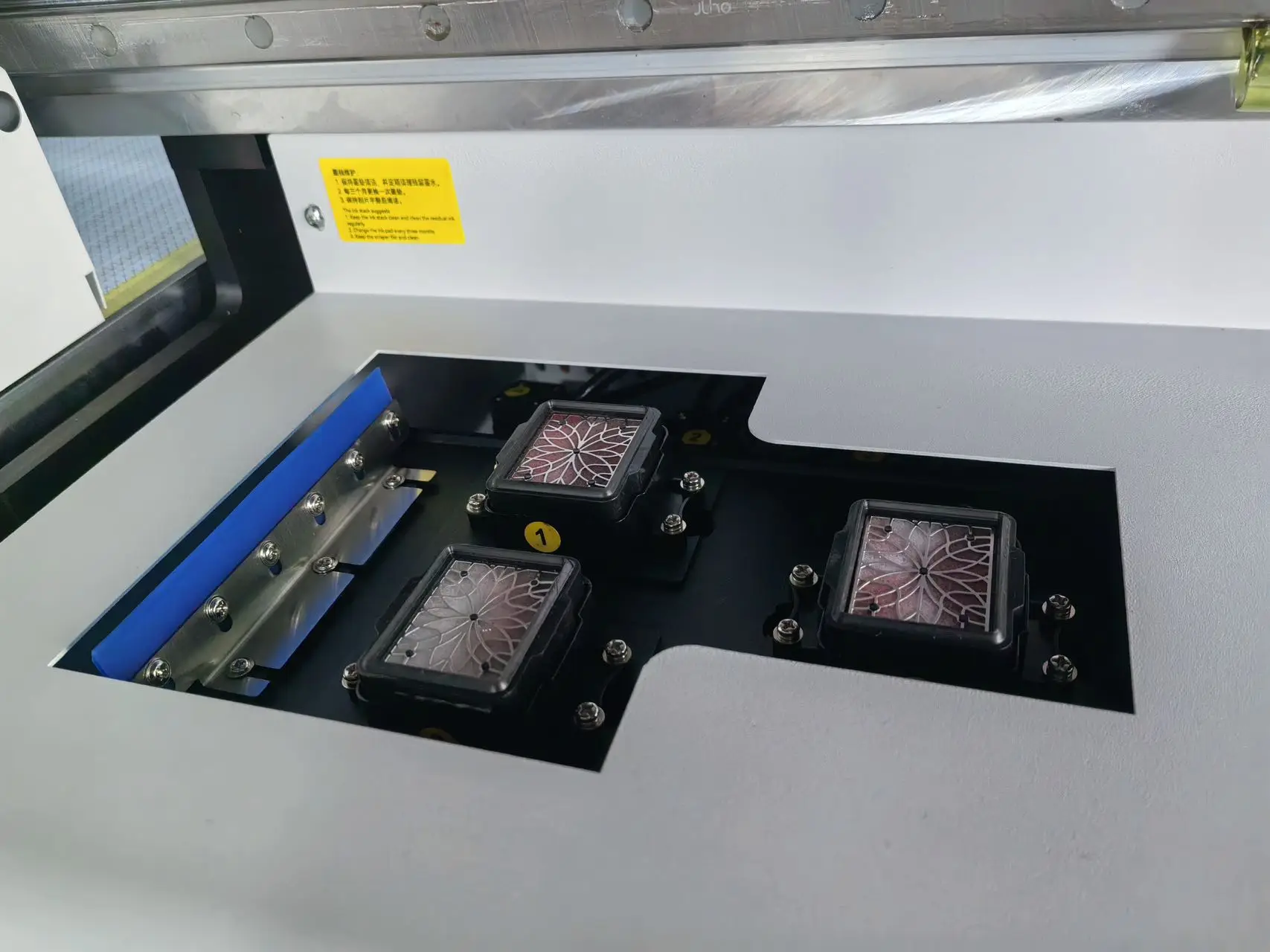

Lifting Ink Stack System
Our signature lifting ink stack is machined from aircraft-grade aluminum. It provides superior sealing for the printheads, preventing nozzle dehydration and ensuring consistent ink flow. The automated cleaning cycles maintain peak performance with minimal manual intervention.

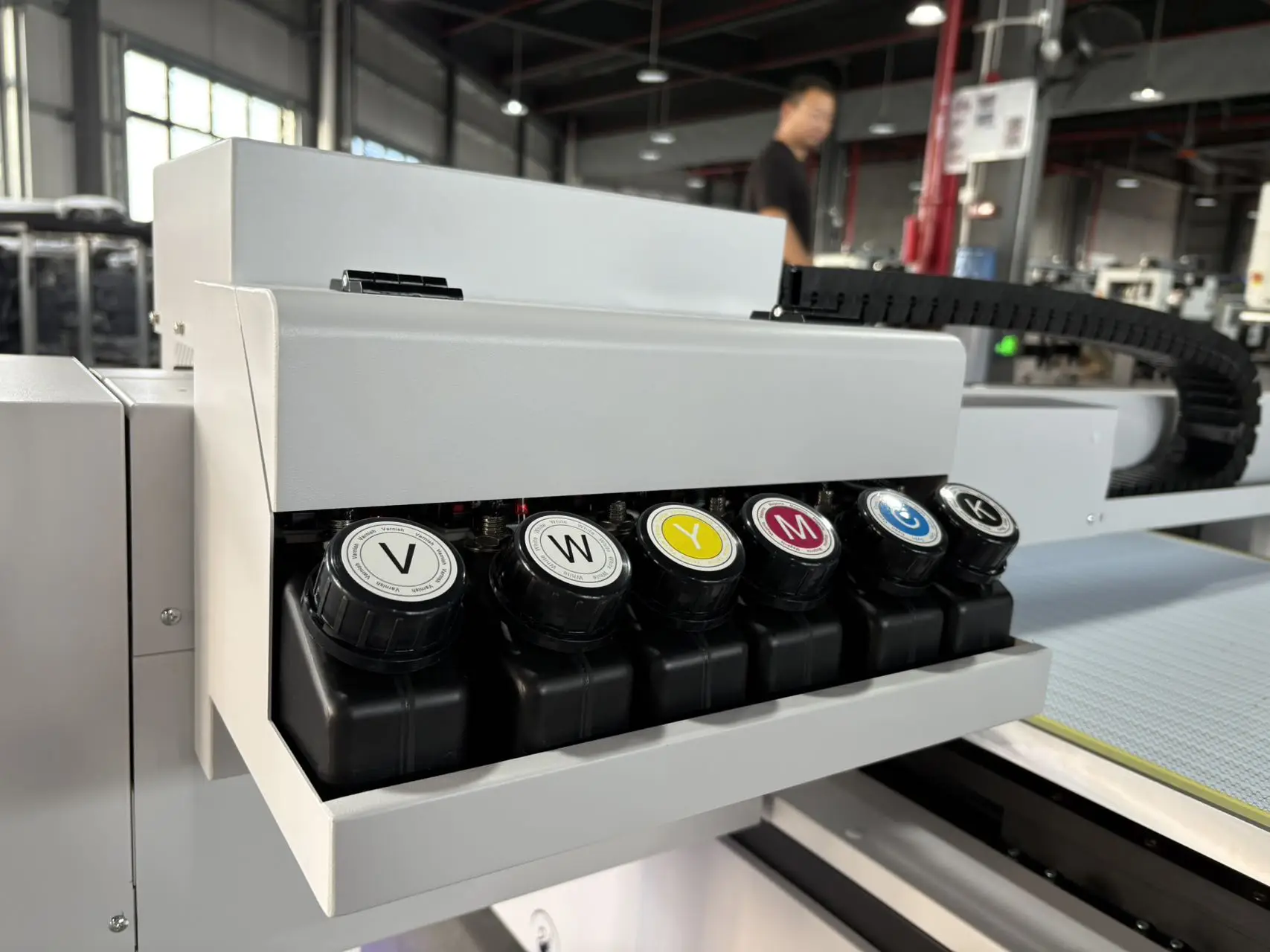

Stable Ink Supply System
The multi-stage filtered ink supply system maintains optimal pressure and prevents air bubbles. Integrated white ink circulation and CMYK agitation keep pigments in suspension, drastically reducing the risk of nozzle clogging and ensuring vibrant color reproduction.
High-Definition Printing Samples

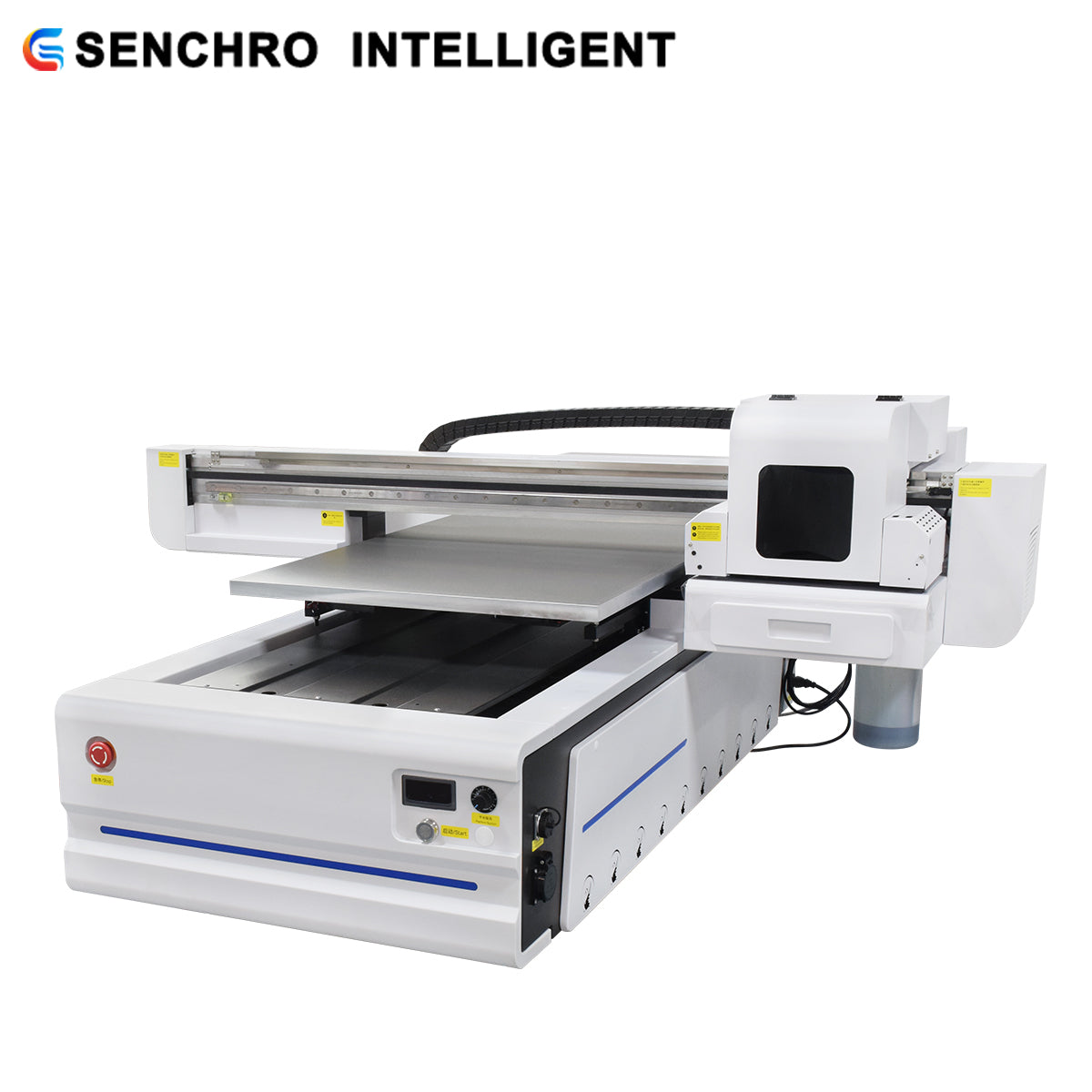

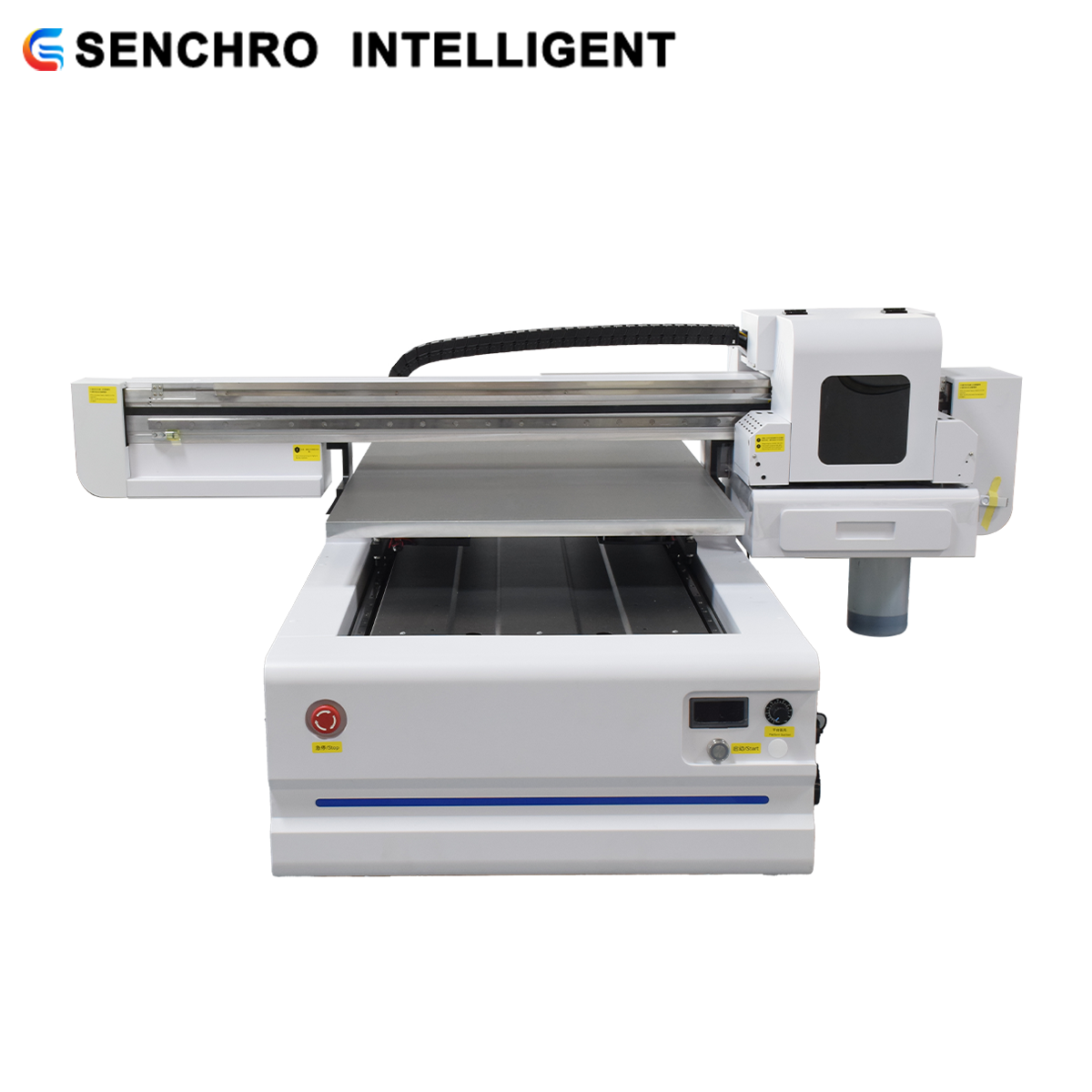

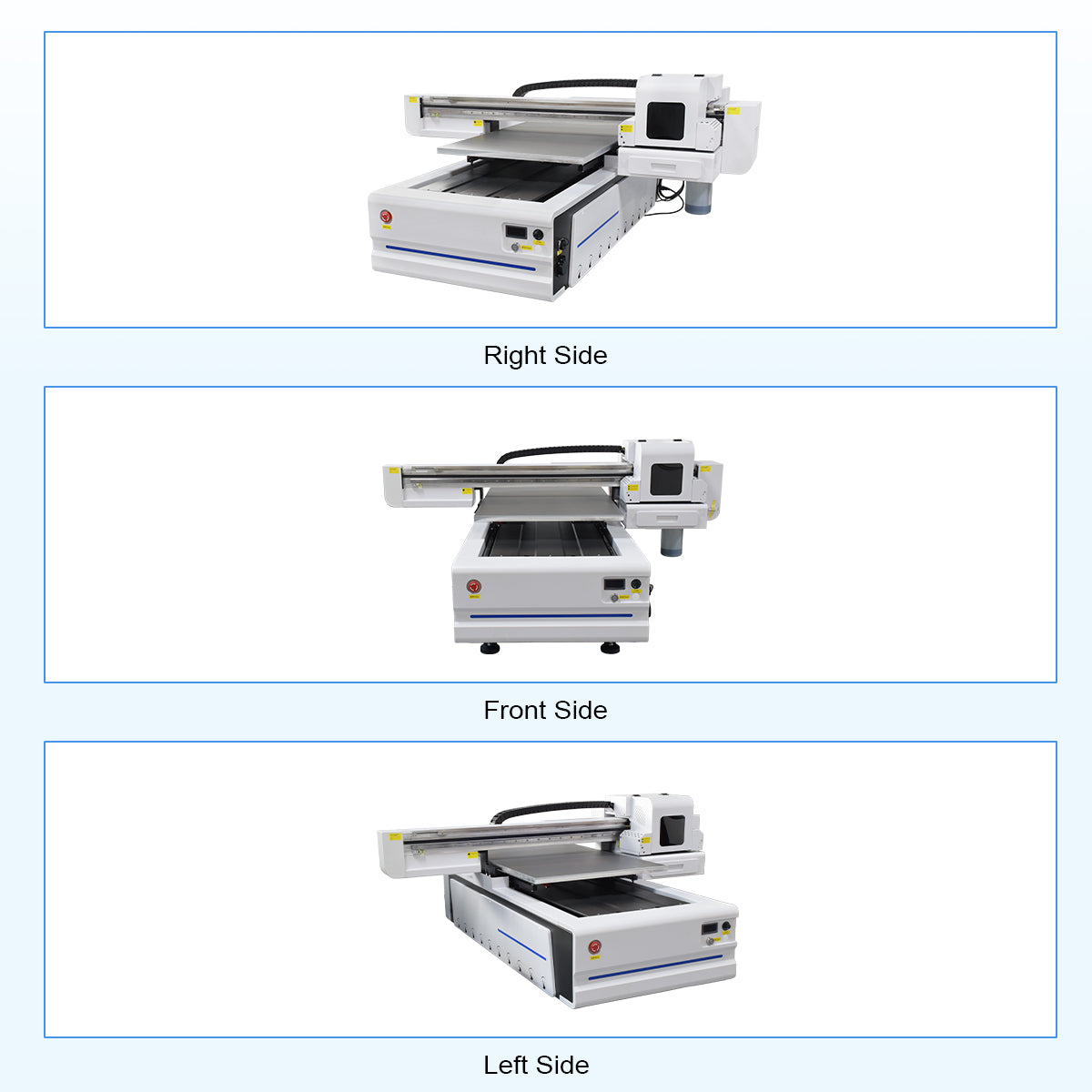

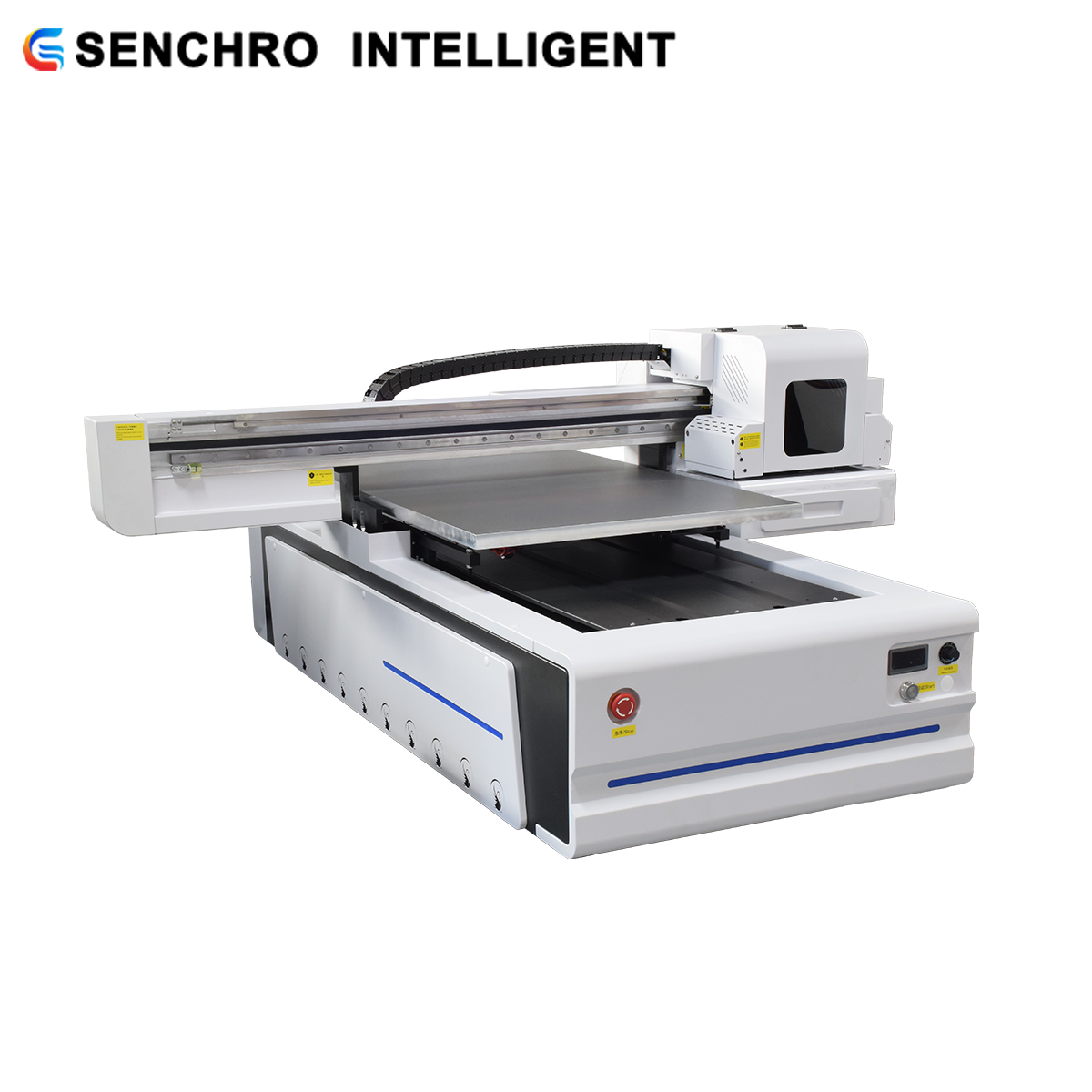

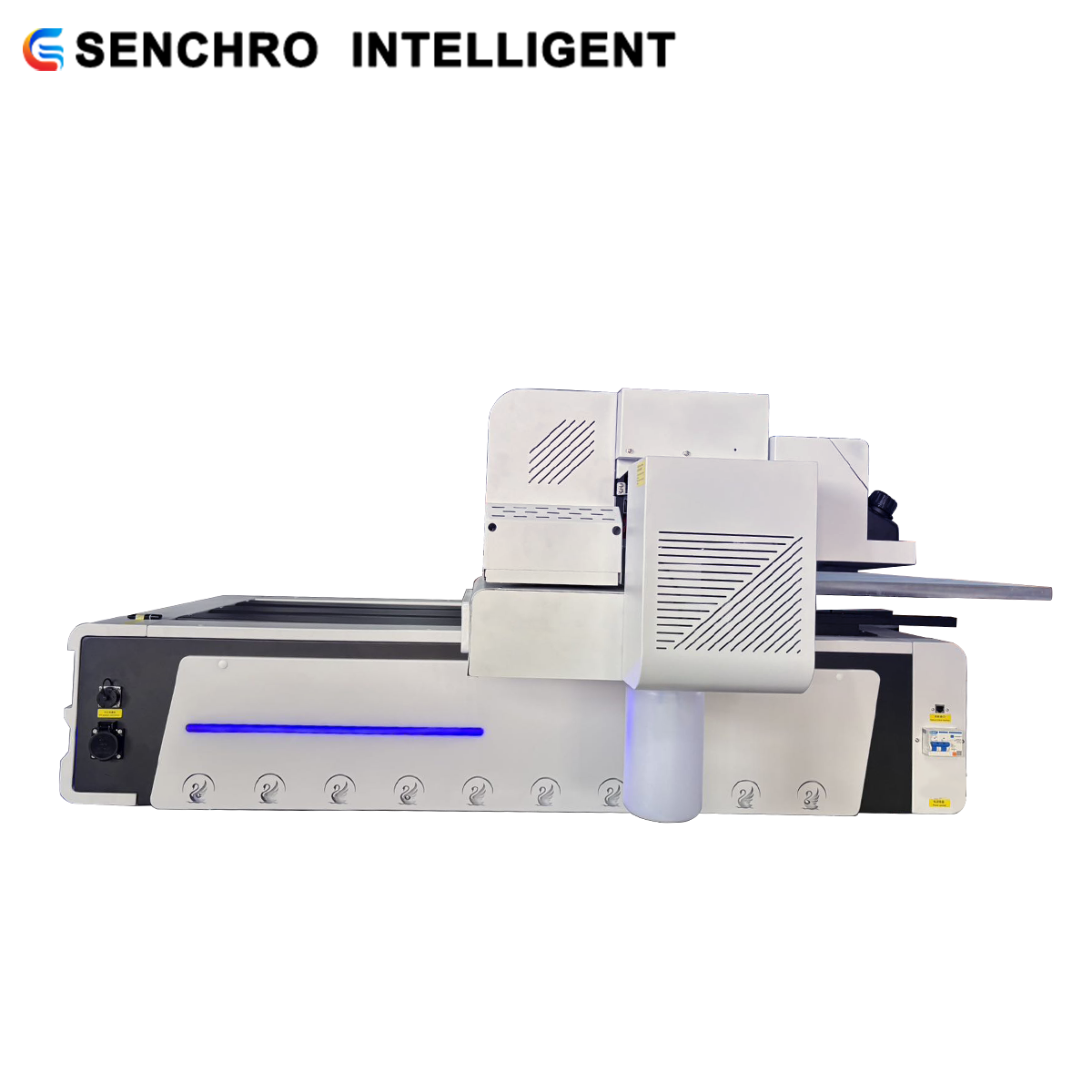

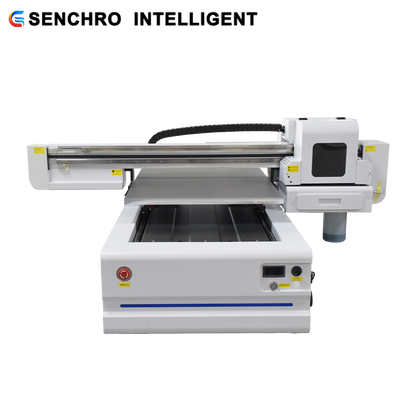

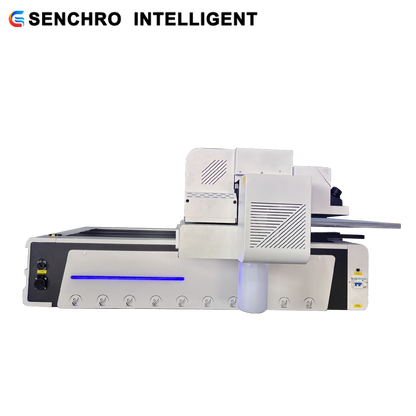

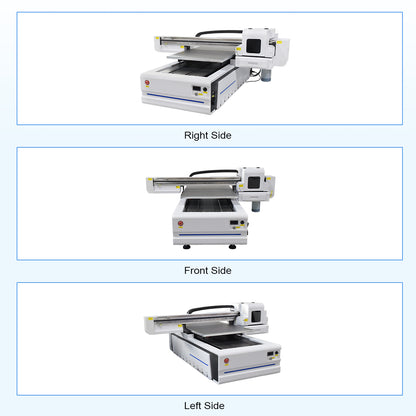

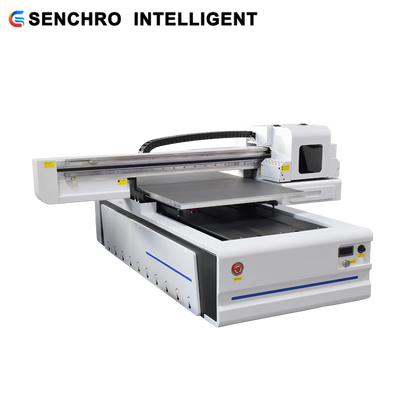

SC-ZT6090 UV FLATBED PRINTER SPECIFICATION
| TECHNICAL DATA | EPSON I3200-U1 * 3 | EPSON I1600-U1 * 3 |
|---|---|---|
| Printing Size | 600 * 900 mm (23.6" * 35.4") | |
| Production Mode | 8 ㎡/h | 8 ㎡/h |
| Standard Mode | 6 ㎡/h | 6 ㎡/h |
| High-Precision Mode | 4.5 ㎡/h | 4.5 ㎡/h |
| Print Height | 3 mm - 150 mm (Automatic Adjustable) | |
| Print Configuration | Standard: W+C+V | High Speed: 2W+2C | Duplex: C+W+C+V | |
| Medium Type | Flatbed + UV DTF + Cylinder Device (Optional) | |
| Ink Supply System | Siphon Ink Supply + Automatic White Ink Agitation | |
| Maintenance | One-Click Auto-Cleaning + Flash Jet Standby Function | |
| Software (RIP) | RIIN / Maintop / ONYX / FlexiPRINT | |
| Data Interface | Dual-Port Gigabit Ethernet Transmission | |
| Operating Environment | Temp: 22-28℃ | Humidity: 40%-60% | |
| Electrical Parameters | AC220/110V ±10% | 50Hz/60Hz | 4500W | |

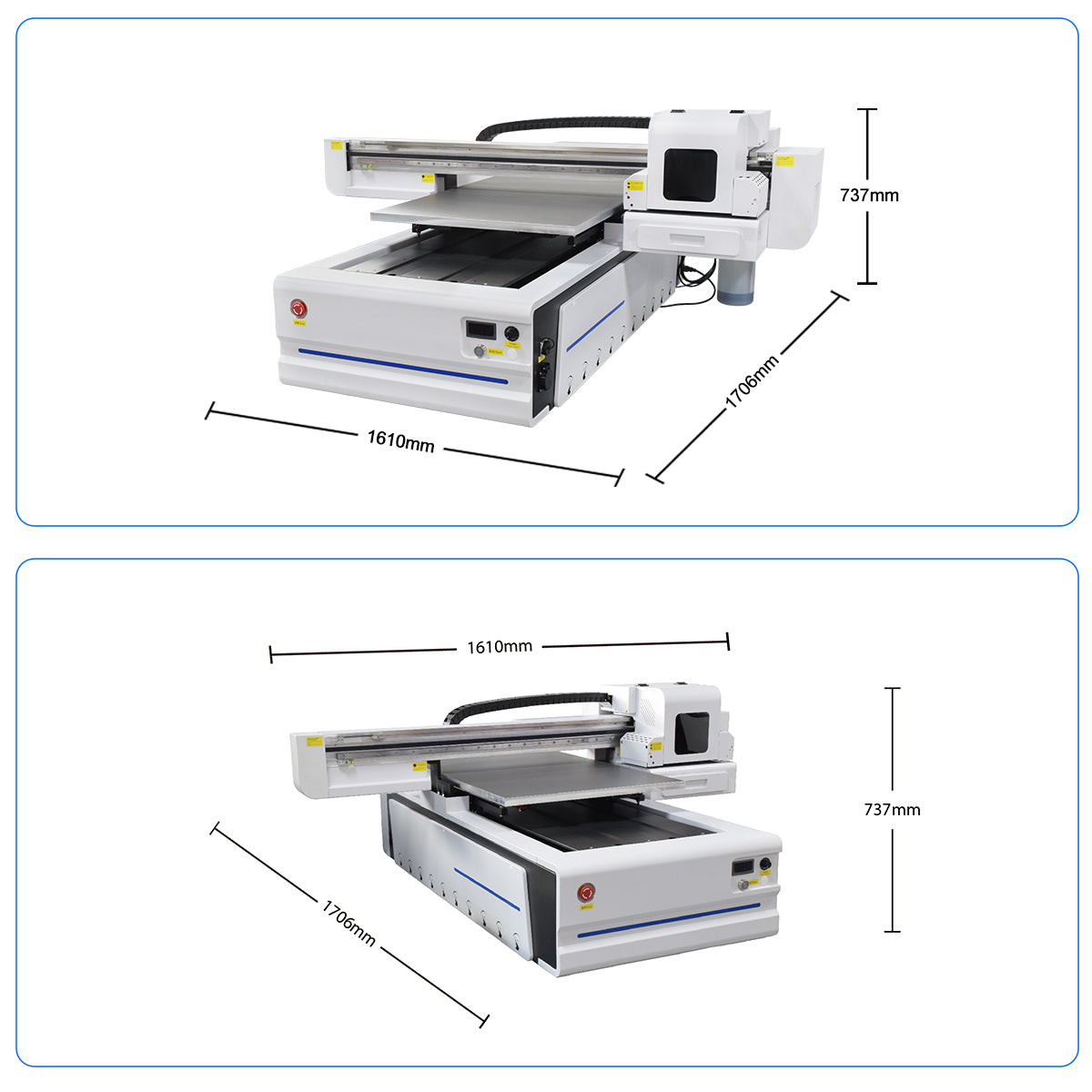

| Machine Dimensions | 1700 * 1610 * 760 mm | |
| Package Dimensions | 1860 * 1820 * 1130 mm | |
| Weight (N.W / G.W) | 220 kg / 280 kg | |
FAQ
The SC-ZT6090 is a multifunctional flatbed printer that can print on almost any hard surface, including acrylic, wood, glass, metal, ceramic, phone cases, and PVC. With the optional cylinder device, it can also print on bottles and cans.
The platform supports an intelligent lifting range of 3mm to 150mm, allowing you to print on thick objects like gift boxes or industrial components.
Yes, the SC-ZT6090 is fully compatible with UV DTF technology (AB Film), allowing you to create high-quality crystal labels for curved or irregular surfaces.
The machine features a one-click automatic cleaning function and a flash-jet standby mode that keeps the nozzles unobstructed, significantly extending print head life.
It supports industry-standard software including RIIN, Maintop, ONYX, and FlexiPRINT.
Typical delivery is within 10-15 working days after payment confirmation.
